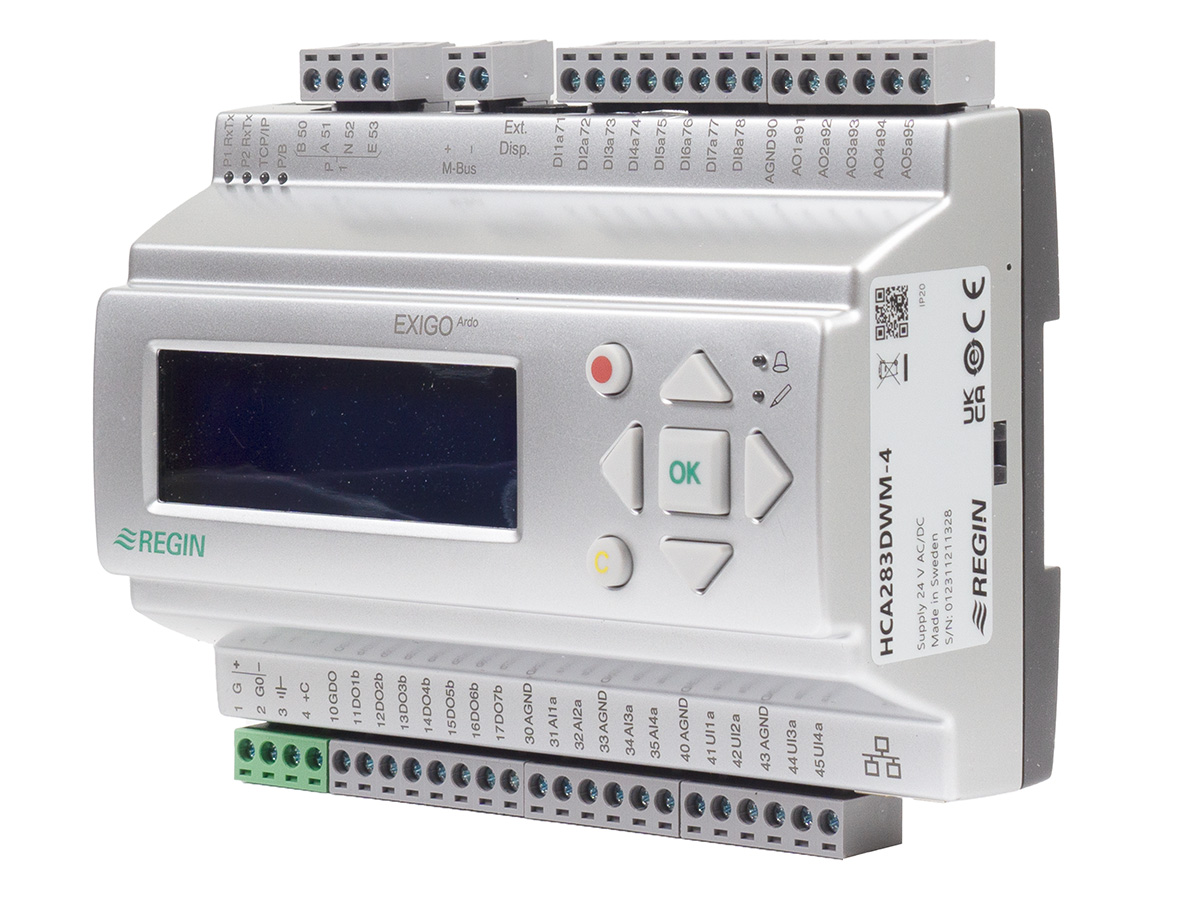

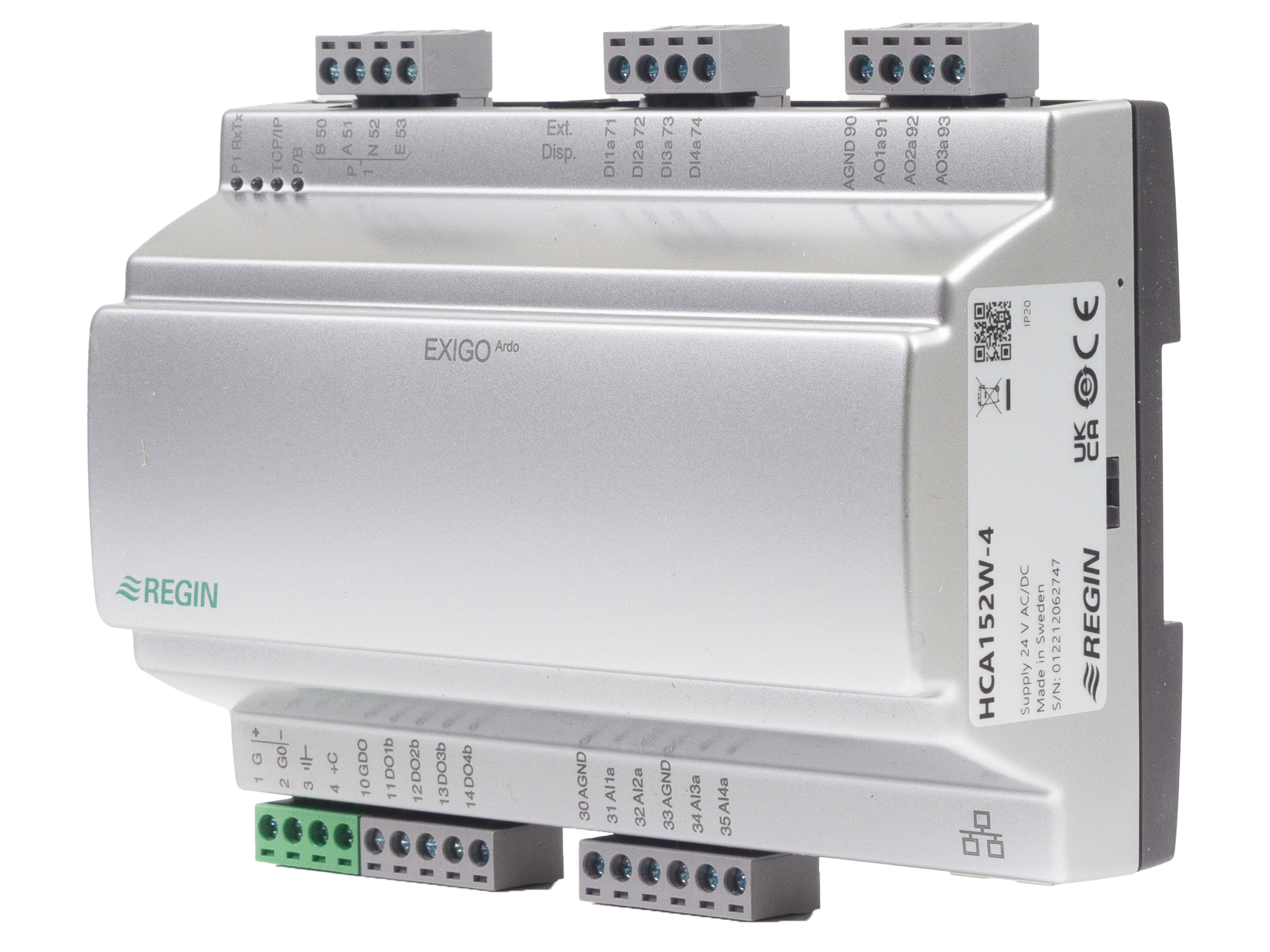

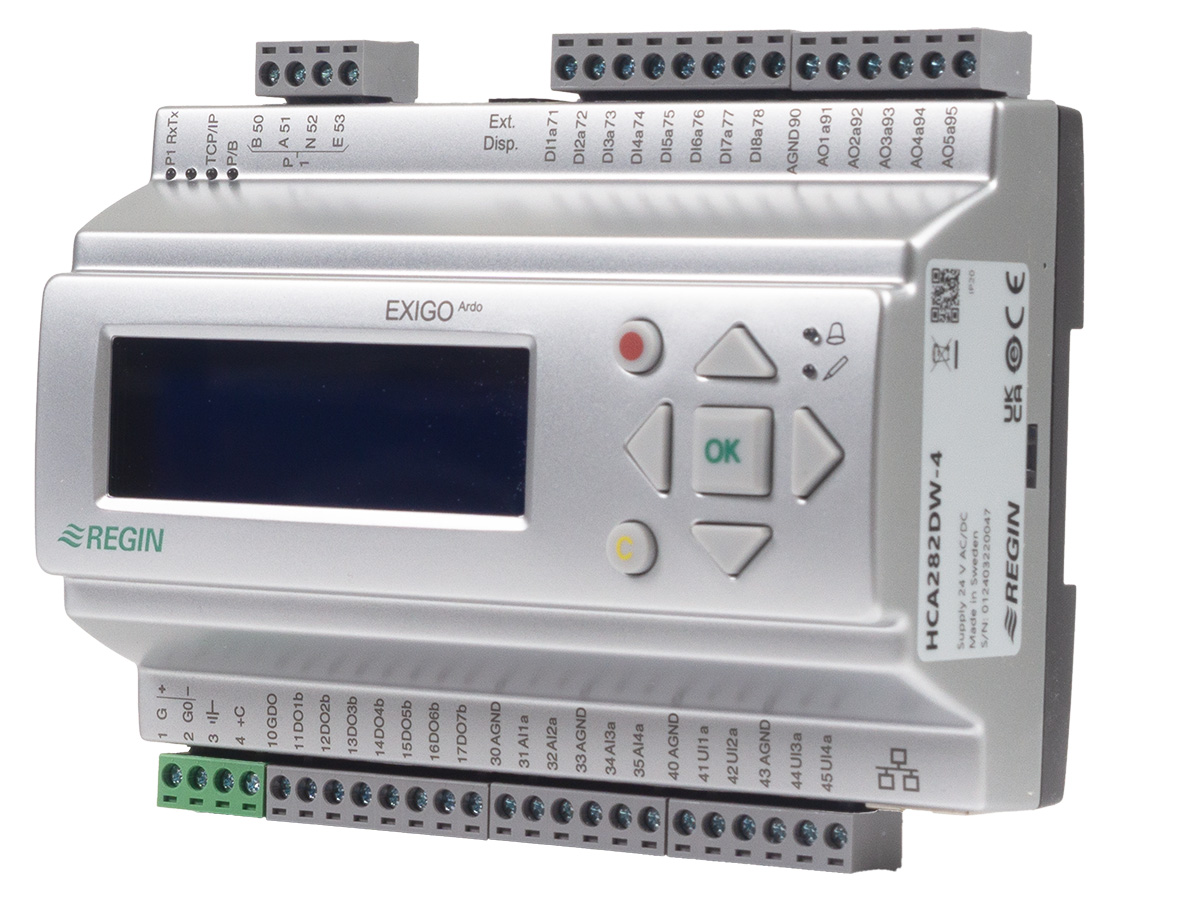

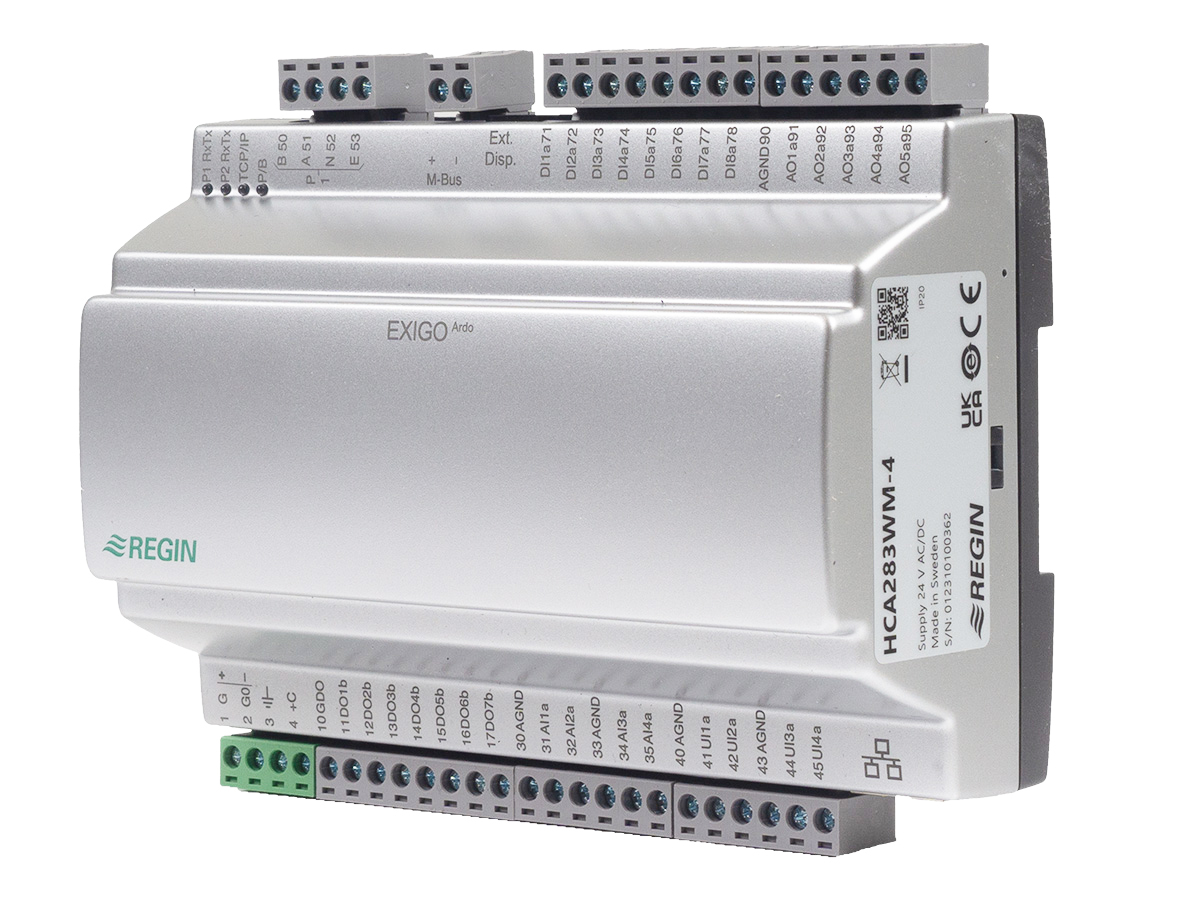

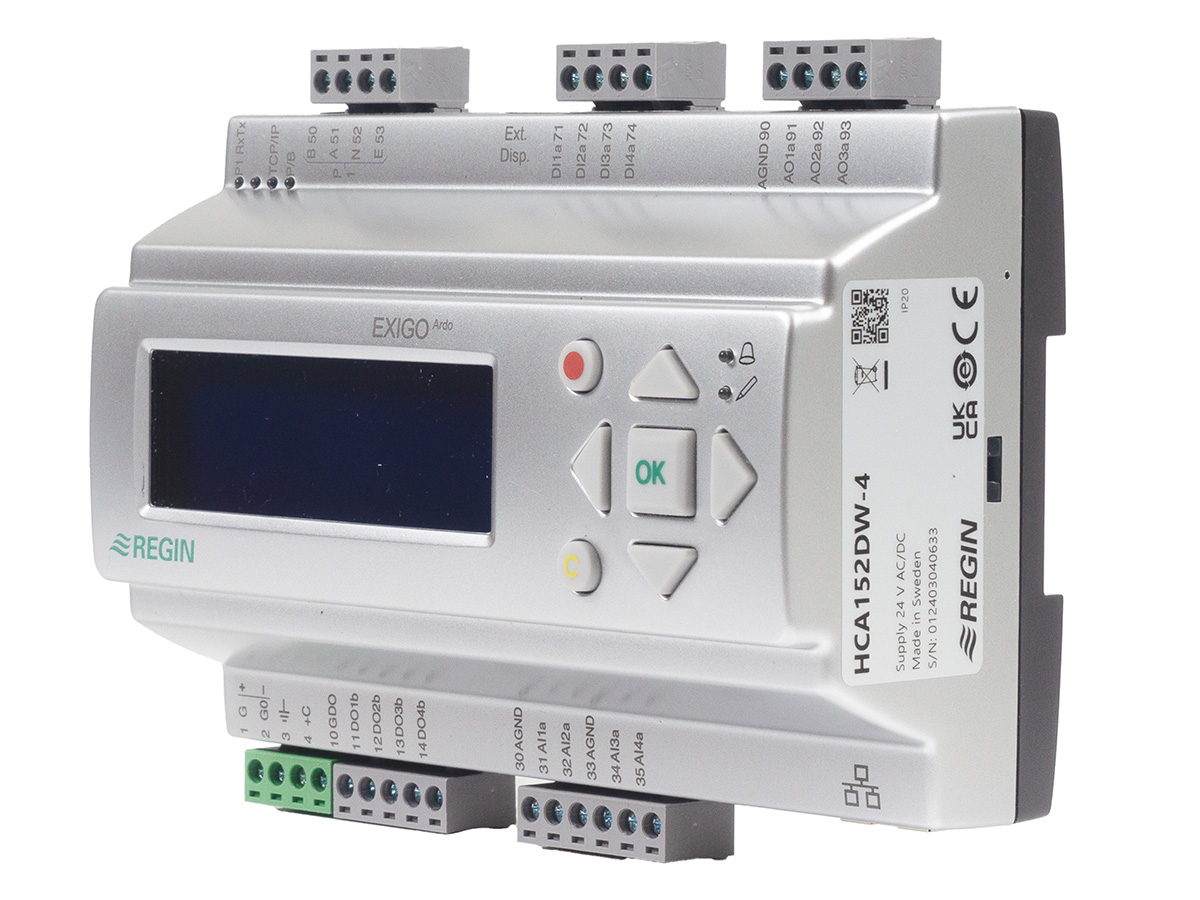

Exigo Ardo – Configurable 24 V heating controller
Exigo Ardo are controllers for heating and boiler control that make every step from installation to operation and maintenance easier than ever. Simply connect the controller, enter any settings as desired and start up. It can be used either stand-alone or integrated into a network. It has built-in support for many different languages and is designed for mounting on a DIN-rail or in a cabinet door.
Item
Technical Data
Power Supply
| Power Supply | 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA |
|---|
Power Supply - Memory backup
| Battery type | CR2032 replacable Lithium cell |
|---|---|
| Battery life time | 5 years |
Environment and protection
| Protection class | IP20 |
|---|---|
| Ambient temperature | 0…50 °C |
| Storage temperature | -20…70 °C |
| Mounting | DIN-rail |
| Dimensions, external (WxHxD) | 149x121x60 mm |
Controllers Type 1 - I/O, specifications
| Analogue inputs type (AI) | PT1000/Ni1000/Ni1000LG/0-10 V |
|---|
Connection specification
| Terminal type | Screw Terminal |
|---|---|
| Detachable terminal | Yes |
| Terminal wire size | 3 mm² |
Material and colour
| Material, housing | Polycarbonate (PC) |
|---|---|
| Material, base | Polycarbonate (PC) |
Software & Documentation
Software
Exigo 4.3 BACnet files
Download
Product Sheet
Exigo Ardo 4.3 (EN)
Download
Manuals
Exigo Ardo 4.x (EN, SV, DE, FR, IT)
Download
User Manual
Exigo 4.3 (EN)
Download
Other Documentation
CAB-STD2-3 Exigo 4.3 editable (EN)
Download
Configuration example 001
Download
Configuration example 002
Download
Configuration example 003
Download
Configuration example 004
Download
Configuration example 201
Download
Configuration example 202
Download
Configuration example 203
Download
Configuration file 001
Download
Configuration file 002
Download
Configuration file 003
Download
Configuration file 004
Download
Configuration file 201
Download
Configuration file 202
Download
Configuration file 203
Download
Exigo - Configuring heating and hot water with AT2
Watch
Exigo 4.3 Predefined configurations (EN)
Download
Exigo 4.3, Variable list (EN)
Download
Exigo Ardo - Hardware
Watch
EXOcompact XCA…, XCE…, XCV…, Env. decl (EN)
Download
HCA…-4, CE decl. (EN)
Download
HCA…-4, UKCA decl. (EN)
Download
Version history - Exigo 4.x
Download
