ZMD – 2- and 3-way control valves DN15-40, kvs 0.25-25, 5.5 mm stroke

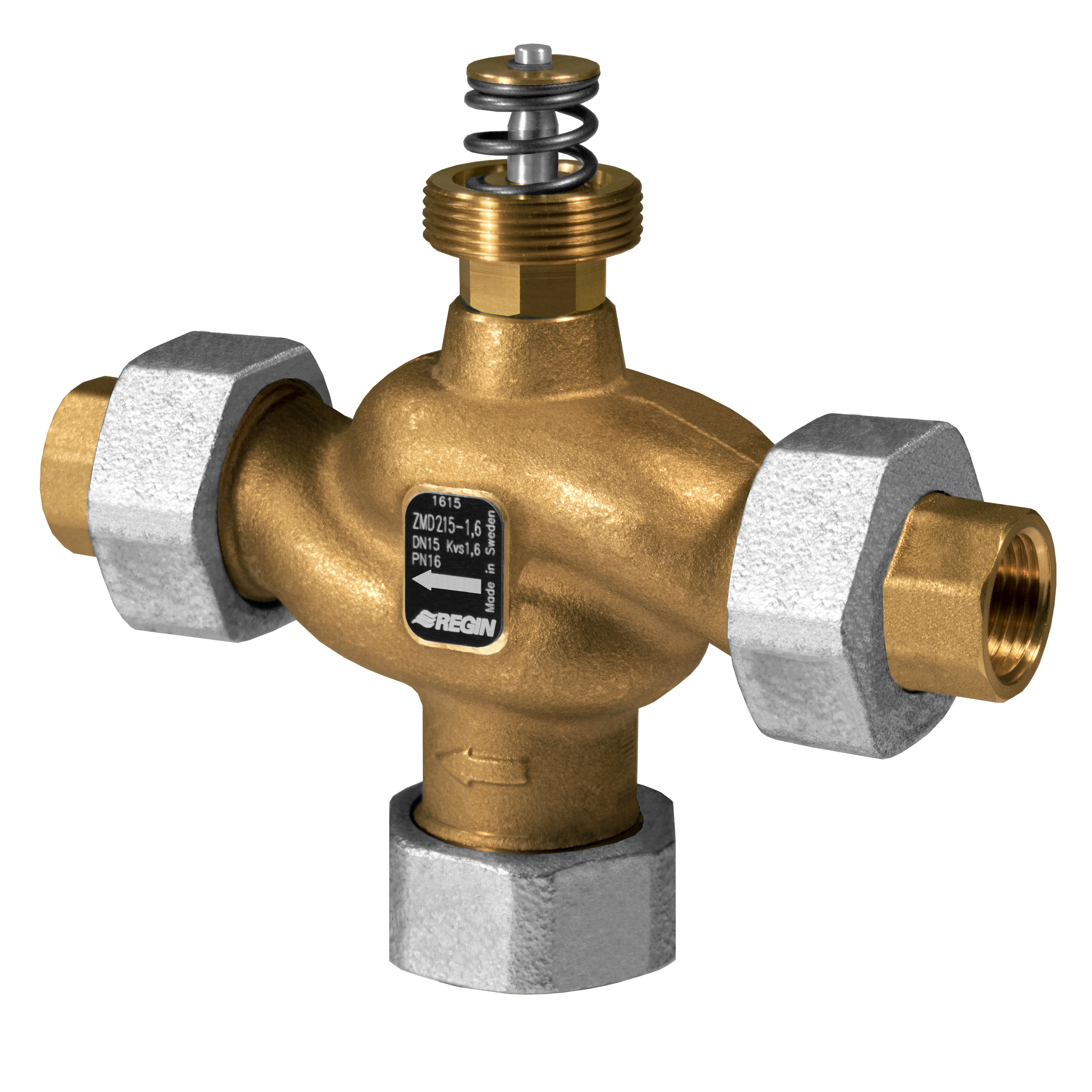

ZMD215-0.25

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

0.25 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD215-0.4

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

0.4 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD215-0.6

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

0.6 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD215-1.0

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

1 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD215-1.6

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

1.6 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD215-2.5

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

2.5 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD215-4.0

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

4 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD220-6.3

Connection

Internal G 3/4"""" on union end

Rangeability

50:1

Nominal diameter

DN20

Stroke

5.5 mm

Kvs

6.3 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD225-10

Connection

Internal G 1"""" on union end

Rangeability

50:1

Nominal diameter

DN25

Stroke

5.5 mm

Kvs

10 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

Galvanized malleable cast iron

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD232-16

Connection

Internal G 1 1/4"""" on union end

Rangeability

50:1

Nominal diameter

DN32

Stroke

5.5 mm

Kvs

16 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

Galvanized malleable cast iron

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

ZMD240-25

Connection

Internal G 1 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN40

Stroke

5.5 mm

Kvs

25 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

Galvanized malleable cast iron

Cover lid

DZR brass CW511L

Valve Type

2-Way

View

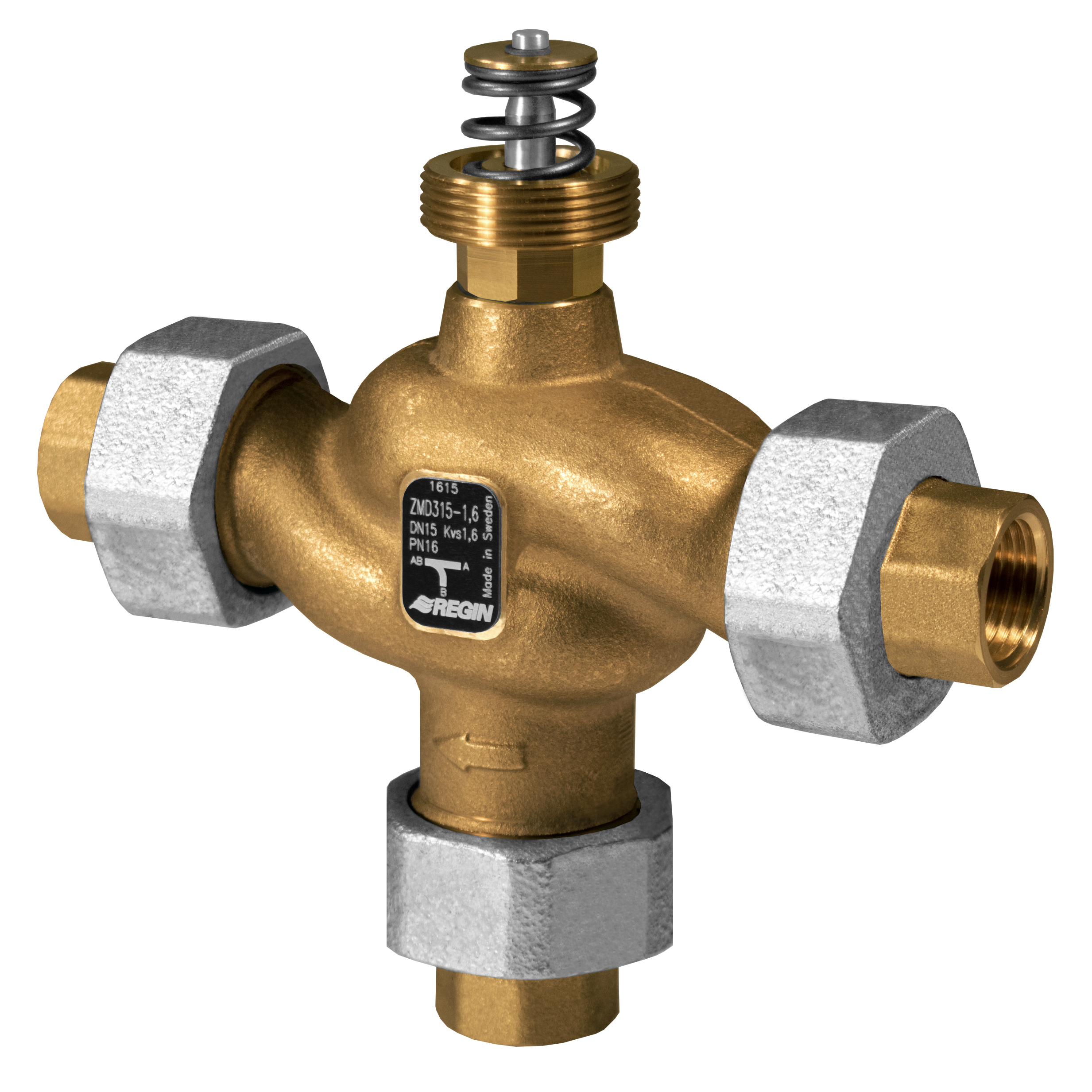

ZMD315-0.25

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

0.25 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Valve Type

3-Way

View

ZMD315-0.4

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

0.4 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Valve Type

3-Way

View

ZMD315-0.6

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

0.6 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Valve Type

3-Way

View

ZMD315-1.0

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

1 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Valve Type

3-Way

View

ZMD315-1.6

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

1.6 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Valve Type

3-Way

View

ZMD315-2.5

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

2.5 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Valve Type

3-Way

View

ZMD315-4.0

Connection

Internal G 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN15

Stroke

5.5 mm

Kvs

4 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Valve Type

3-Way

View

ZMD320-6.3

Connection

Internal G 3/4"""" on union end

Rangeability

50:1

Nominal diameter

DN20

Stroke

5.5 mm

Kvs

6.3 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

DZR brass CW511L

Valve Type

3-Way

View

ZMD325-10

Connection

Internal G 1"""" on union end

Rangeability

50:1

Nominal diameter

DN25

Stroke

5.5 mm

Kvs

10 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

Galvanized malleable cast iron

Valve Type

3-Way

View

ZMD332-16

Connection

Internal G 1 1/4"""" on union end

Rangeability

50:1

Nominal diameter

DN32

Stroke

5.5 mm

Kvs

16 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

Galvanized malleable cast iron

Valve Type

3-Way

View

ZMD340-25

Connection

Internal G 1 1/2"""" on union end

Rangeability

50:1

Nominal diameter

DN40

Stroke

5.5 mm

Kvs

25 m³/h

Max. diff. pressure

400 kPa

Media temperature

2…110 °C

Nipple

Galvanized malleable cast iron

Valve Type

3-Way

View
