Room unit with touch display
Slim room unit with backlit touch display. The display is prepared for Plug'n Play with Regin's room controllers RegioEedo and RegioArdo and for easy configuration with the ventilation controllers CorrigoArdo and CorrigoVido. It can also be used with any Modbus master controller.

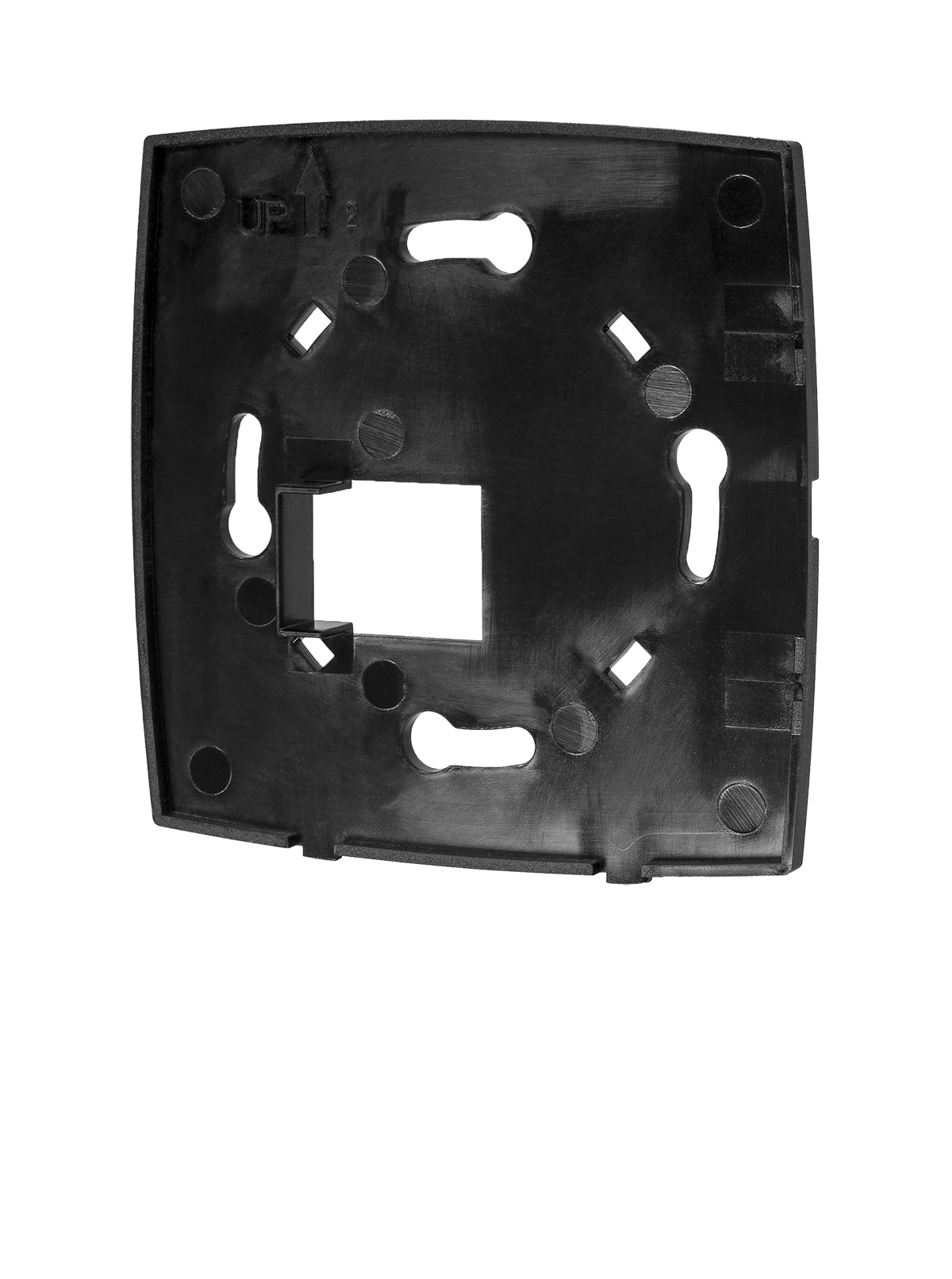

NOTE! A backplate for either flush mounting or wall mounting must be added to the product. See ED-RUD-2-FM (flush), ED-RUD-2-WM (wall) or ED-RUD-2-FM-BLACK (flush), ED-RUD-2-WM-BLACK (wall).
Item
Technical Data
Power Supply
| Power Supply | 24VAC (22...26 V AC 50Hz / ), 1.5 VA |
|---|
Environment and protection
| Protection class | IP30 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | 0…50 °C |
| Storage temperature | -20…70 °C |
| Dimensions, external (WxHxD) | 95x95x23 mm |
| Bulb length | 0, 18 mm |
| Weight, incl. packaging | 0.18 kg |
Connection specification
| Terminal wire size | 1.5 mm² |
|---|
Material and colour
| Material, housing | Polycarboante (PC) |
|---|
Accessories
