Regio RUX

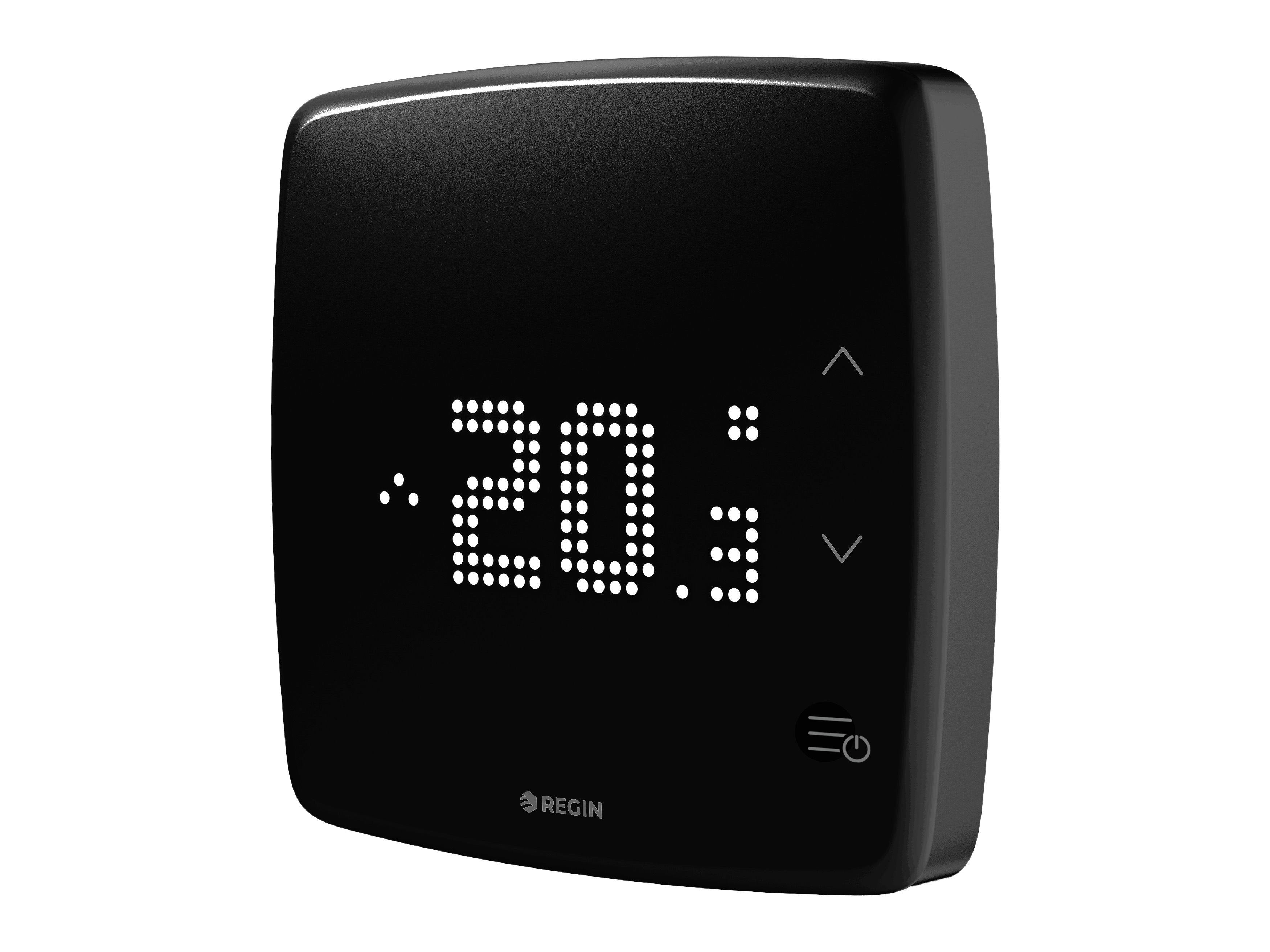

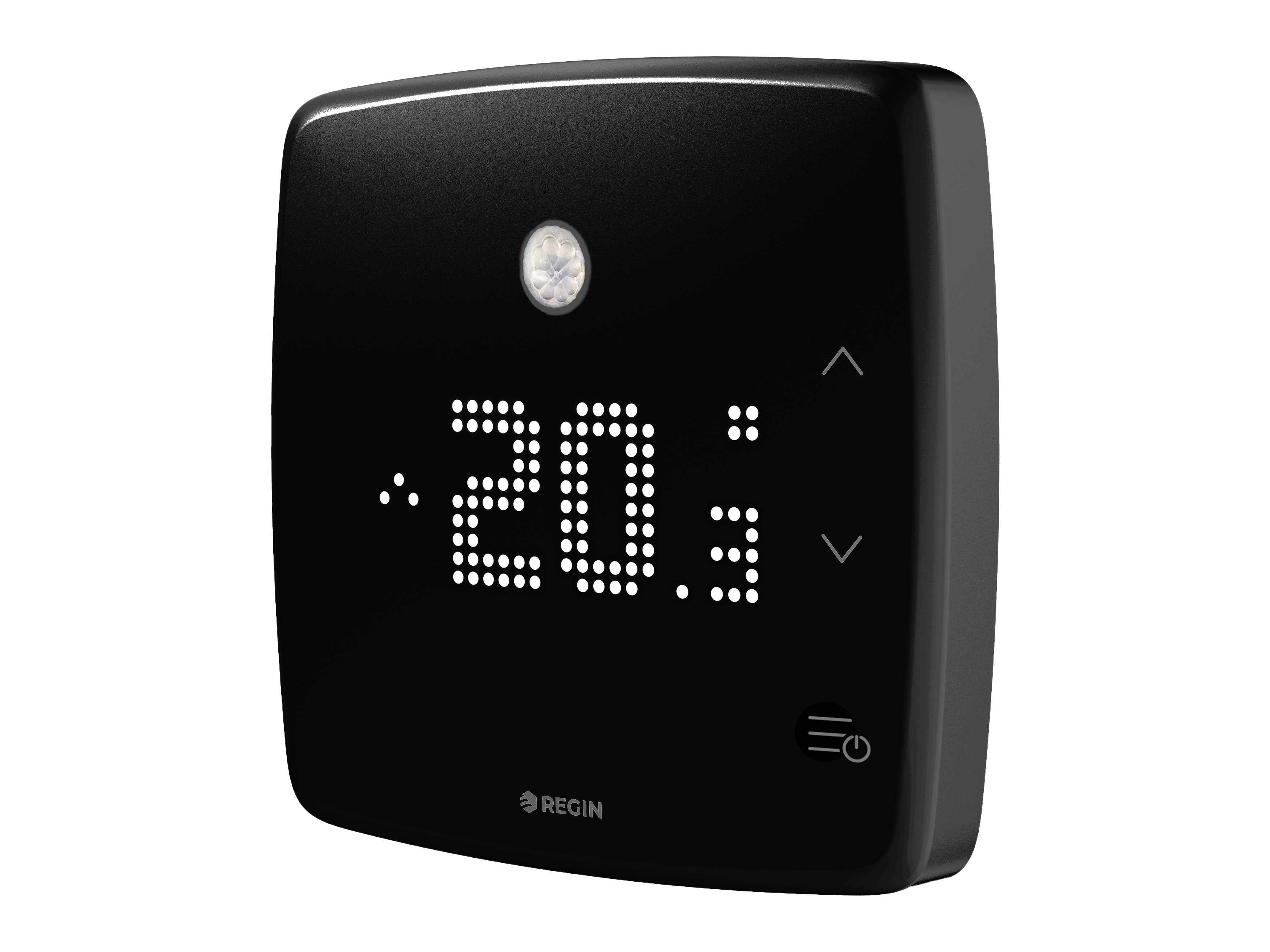

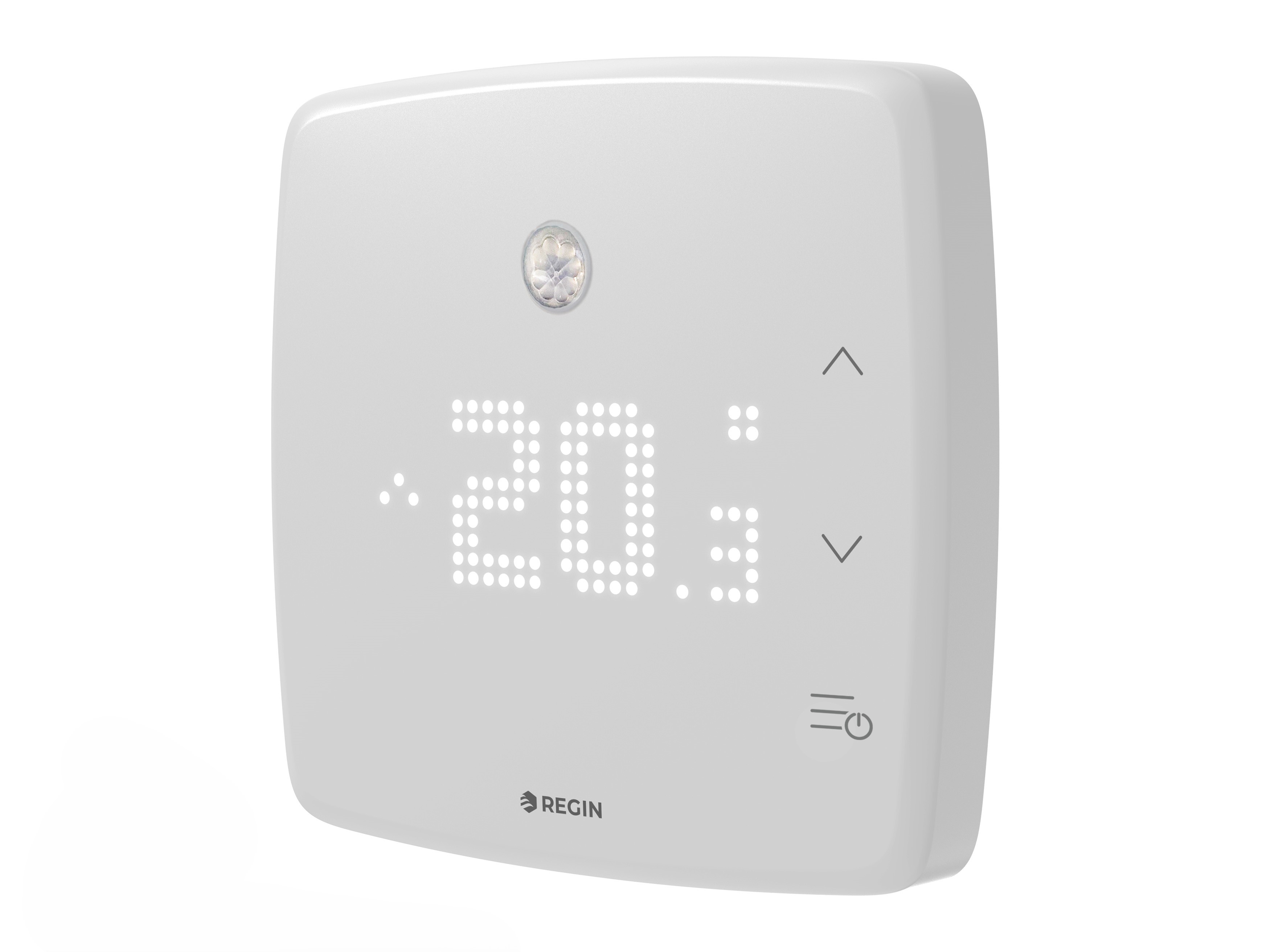

Regio RUX is a wall-mounted room unit that combines smart sensing, sleek design, and effortless integration with an easy-to-understand user interface. With built-in sensors for temperature, humidity, CO₂, VOC and motion, it delivers all essential room data in one device. Available in white or black, the slim, minimalist design fits discreetly into any environment, while the LED matrix display provides clear, easy-to-read information with a simple traffic light system for CO₂ levels. The Regio RUX integrates seamlessly with BACnet, Modbus and EXOline, and works out-of-the-box with Regio Ardo/Eedo room controllers. Maintenance is effortless with wireless updates via the Regin:GO app, and smart terminals make installation and troubleshooting quick and reliable.
With the Regio RUX, you get precision, simplicity, and style in a single solution for modern building environments.
Item
Technical Data
Power Supply
| Power Supply | 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA |
|---|
Environment and protection
| Protection class | IP30 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Ambient temperature | 0…50 °C |
| Storage temperature | -20…70 °C |
| Mounting | Wall (separate backplate) |
| Weight, incl. packaging | 0.115 kg |
Transmitter Data - Temperature
| Accuracy, temperature | ±0, 5K (15-30°C) |
|---|
Connection specification
| Terminal wire size | 2.1 mm² |
|---|
Material and colour
| Material, housing | Polycarbonate (PC) |
|---|---|
| Colour, housing | RAL9003 Polar White / RAL9005 Jet Black |
