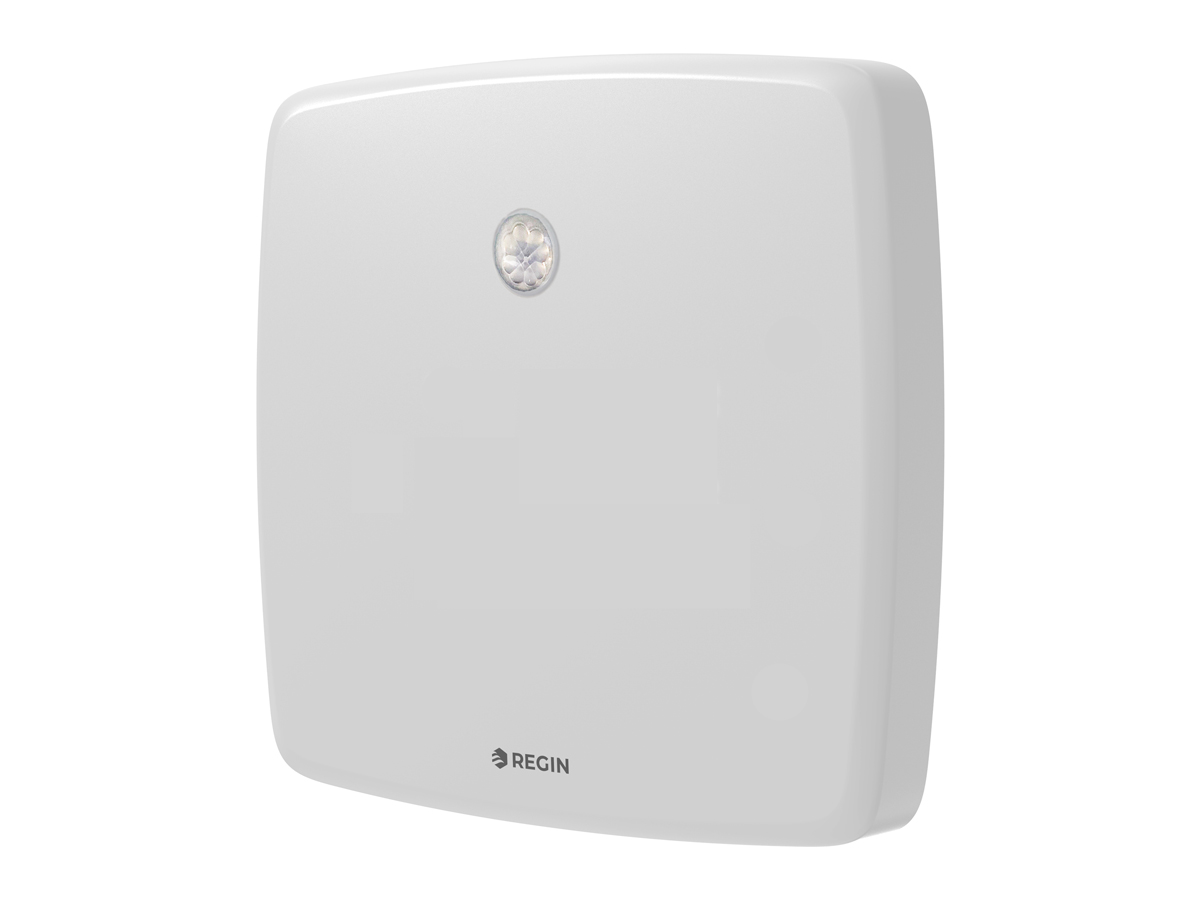

Regio RTX

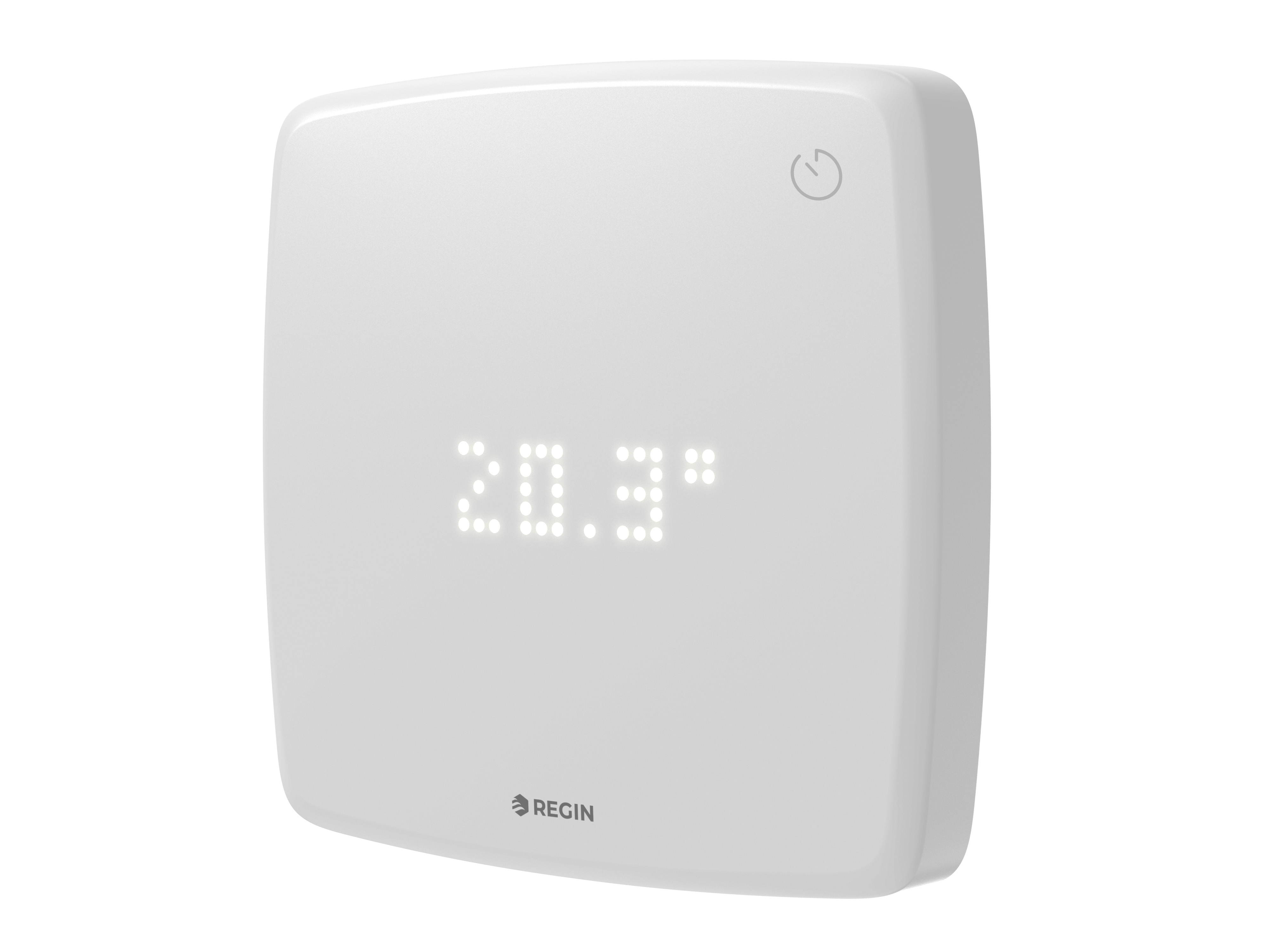

The slim and minimalist Regio RTX transmitters combines clarity, versatility, and seamless integration in one device. The LED matrix display with scrolling text is easy to read from a distance, simple to clean, and includes a traffic light for CO₂ levels as well as the possibility to display a custom text over communication. With built-in sensors for temperature, humidity, CO₂, VOC, and motion (PIR), it delivers complete indoor monitoring in a single unit. Flexible communication via BACnet, Modbus, or EXOline (in communication models) ensures smooth BMS integration. Built to complement modern architecture, the transmitter’s minimalist, slim design makes it an ideal choice for design-sensitive spaces. Installation is further simplified with an separate back plate with removable terminals, enabling installation in unclean environments without exposing the electronics, as well as easy future servicing. Available with a countdown timer (RTX-T-CDE), providing control functions for ventilation or auxiliary equipment as well as with various sensor combinations with- or without display. Setup is quick with wireless configuration through the Regin:GO app or Application tool 2.
Item
Technical Data
Power Supply
| Power Supply | 24VAC/DC (18...28 V AC 50/60Hz / 20...36 V DC), 2.5 VA |
|---|
Environment and protection
| Protection class | IP30 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Ambient temperature | 0…50 °C |
| Storage temperature | -20…70 °C |
| Mounting | Wall (separate backplate) |
| Weight, incl. packaging | 0.115 kg |
Transmitter Data - Temperature
| Accuracy, temperature 1 | ±0.5 °K @ 15...30 °C |
|---|
Connection specification
| Detachable terminal | Yes |
|---|---|
| Terminal wire size | 2.1 mm² |
Material and colour
| Material, housing | Polycarbonate (PC) |
|---|---|
| Colour, housing | RAL9003 Polar White |
