Regio Ardo

Regio Ardo is a configurable 24 V zone controller. One controller is able to control two different zones.

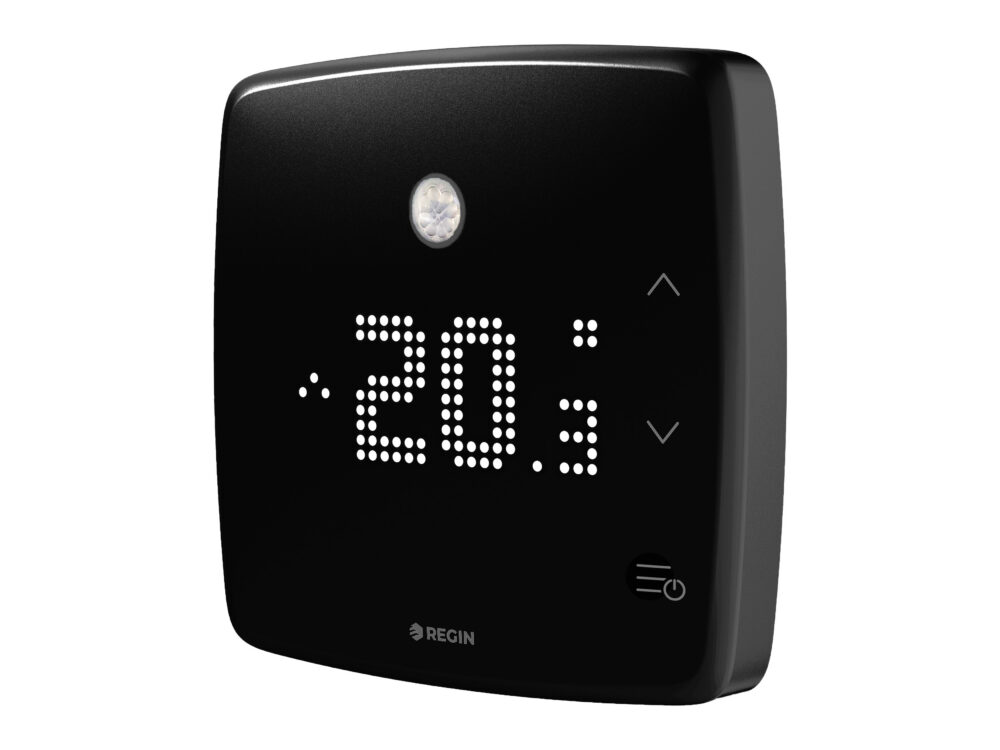

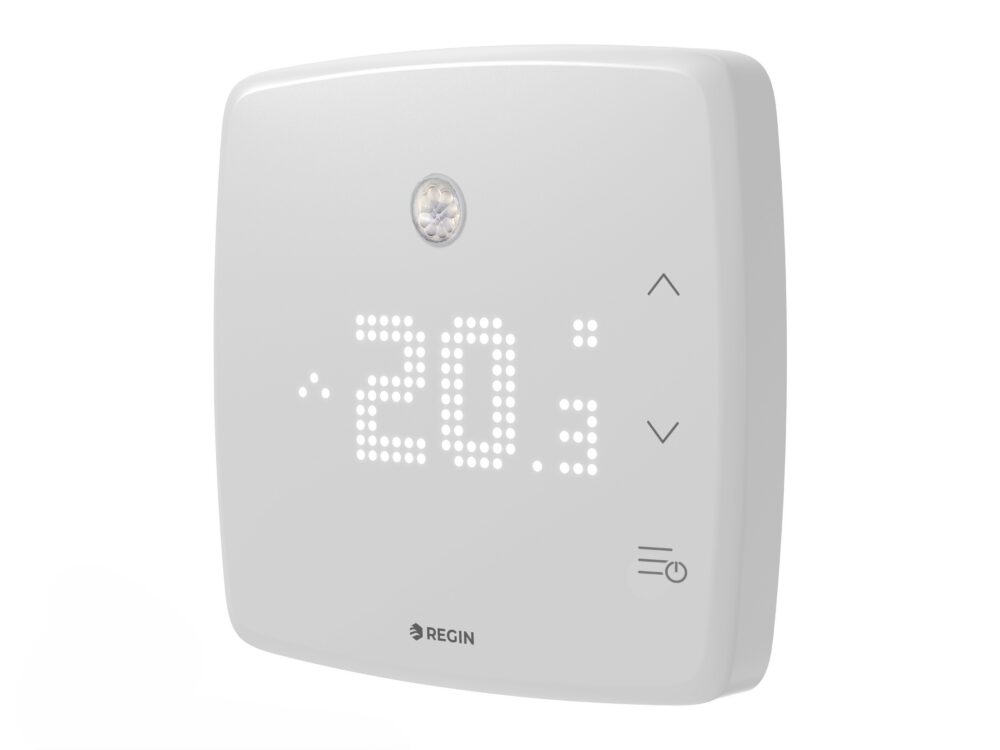

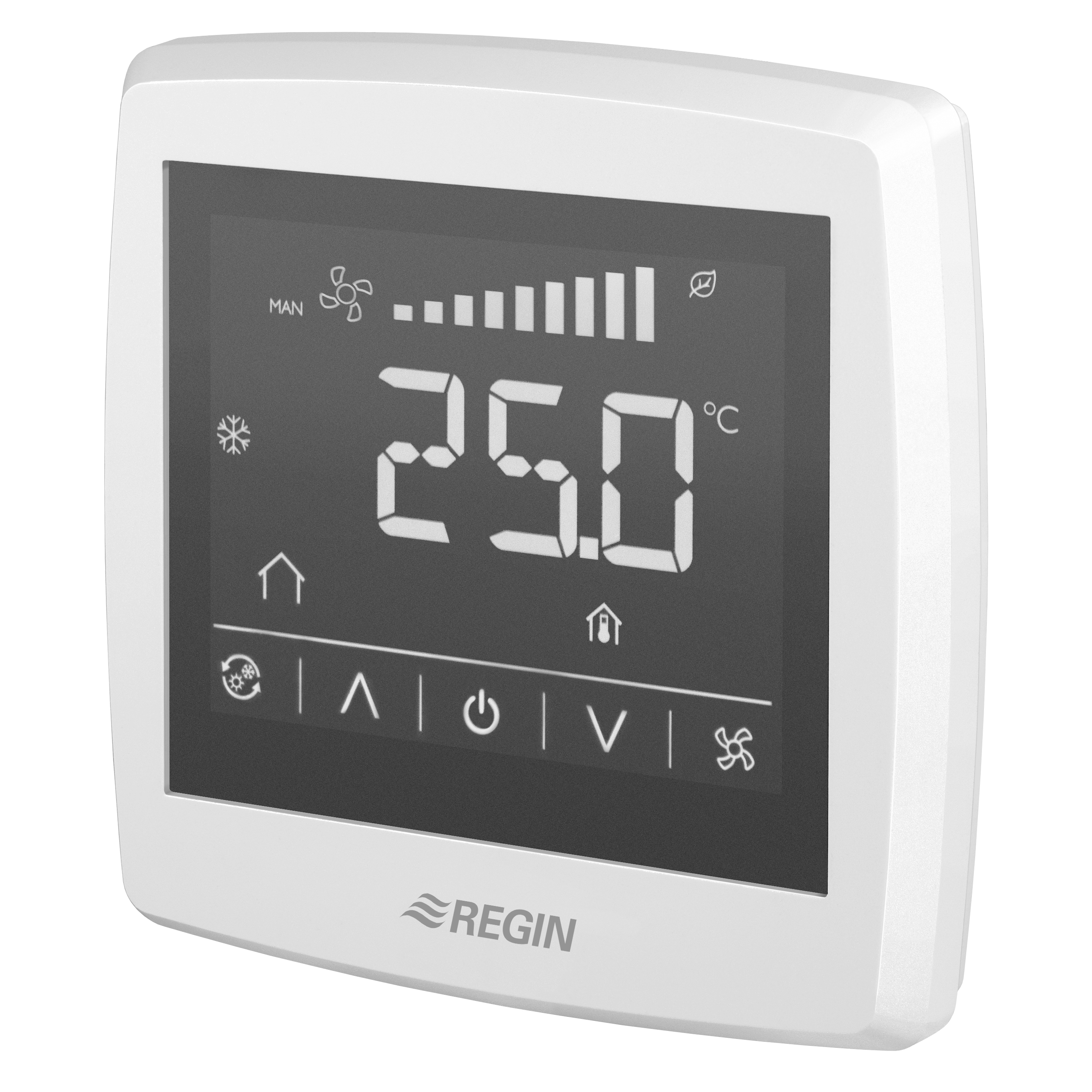

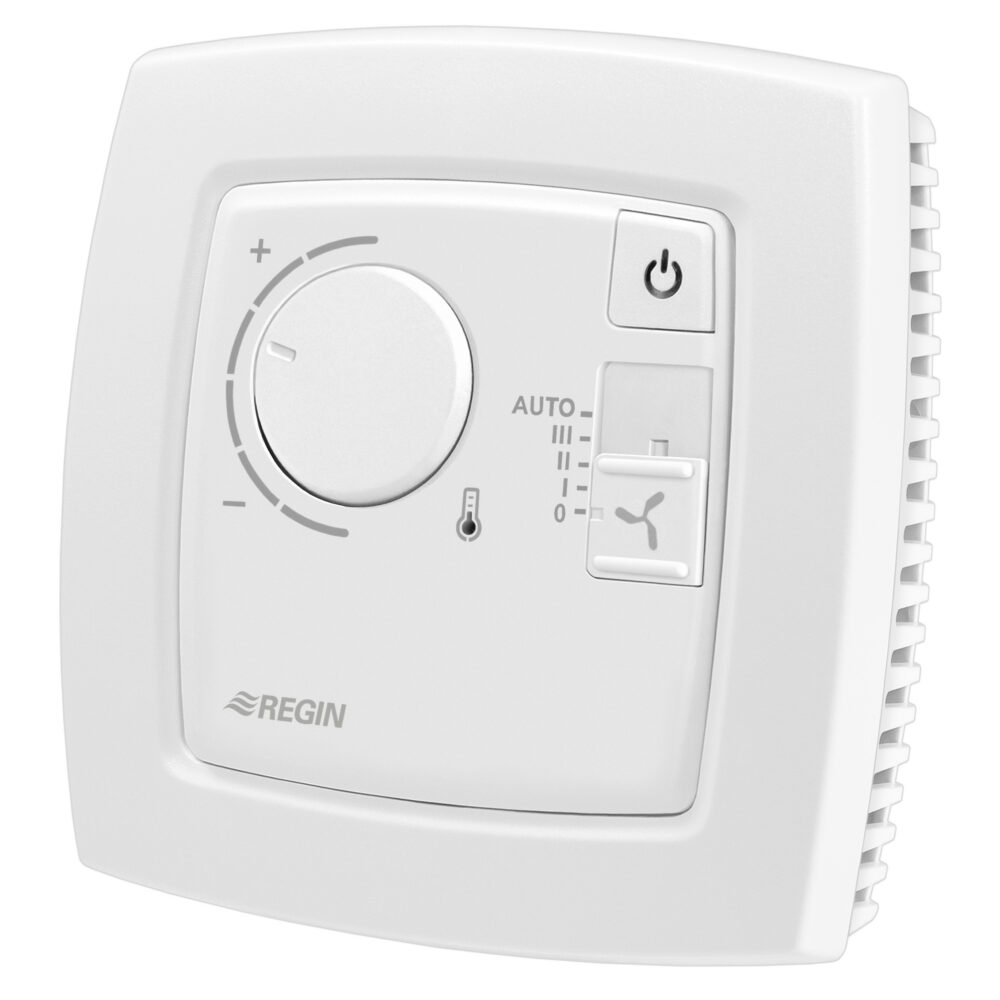

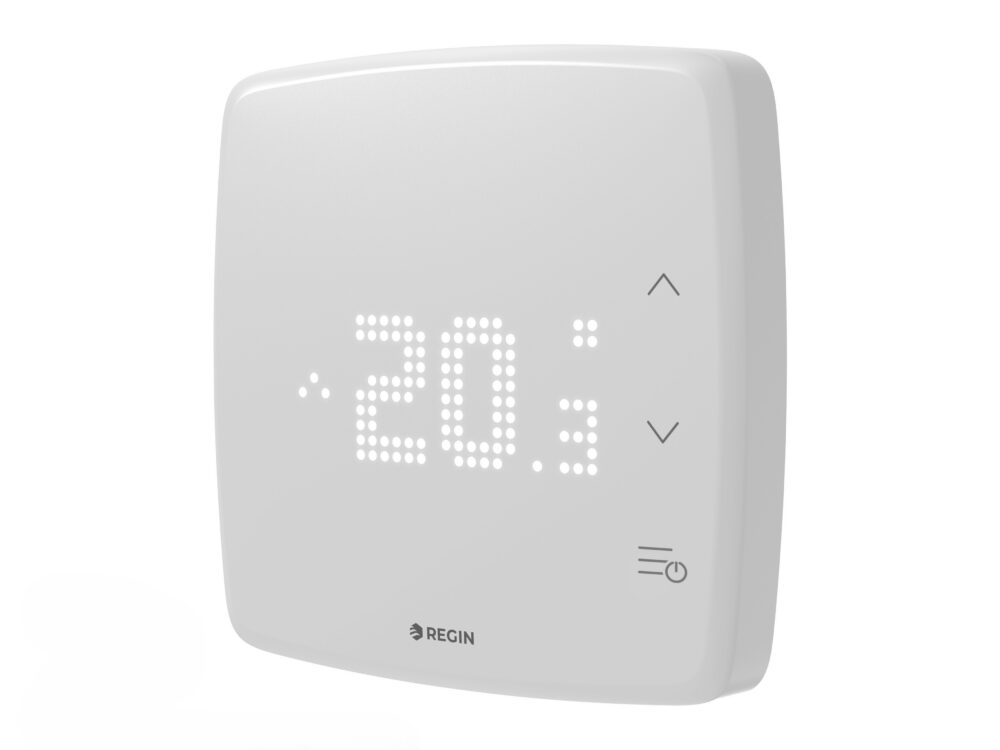

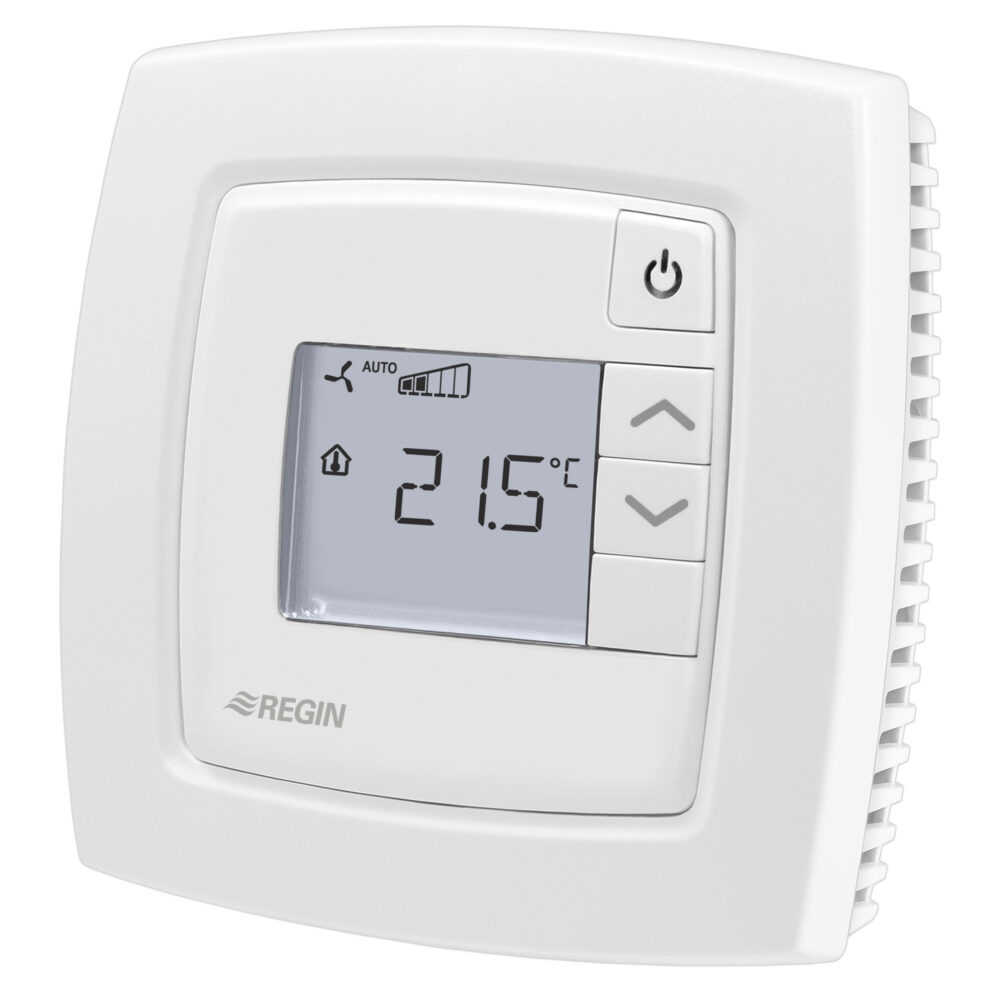

It is quick and easy to commission. The I/O configuration and application setup for a VAV controlled room are predefined and the room units RUX or ED-RU are easily connected.

The controller is compatible with other Regin products and can easily be integrated into larger systems.

The controller can be used in systems with communication, e.g. EXOline, Modbus or BACnet (over RS485 or TCP/IP). It is installed in a ceiling void, on a junction box plate or on a DIN-rail.


Technical Data

Power Supply

Power Supply 24VAC (20...28 V AC 50/60Hz / ), 4.0 VA

Power Supply - Memory backup

Battery type CR2032
Battery life time 5 years

Environment and protection

Protection class IP20
Ambient humidity (non-condensing) 0…95 % RH
Ambient temperature 0…50 °C
Storage temperature -20…70 °C
Mounting DIN-rail, Wall, Ceiling
Dimensions, external (WxHxD) 153x202x68 mm

Controllers Type 1 - I/O, specifications

Analogue inputs type (AI) PT1000 or 0...10 V DC
Digital outputs type (DO) 24V AC/DC, 2A. Total max 8A.
Condensation inputs type (CI) Input for Regin's condensation detector KG-A/1
Analogue outputs type (AO) 0...10 V DC

Software & Documentation

Product Sheet

Regio Ardo (EN)
Download

Manuals

Regio Ardo (EN, SV, DE, FR, IT)
Download

Benutzerhandbücher

Inputs and outputs, Specification (EN)
Download
Regio Ardo / Regio Eedo (EN) - valid for software version 2.2-1-01
Download

Other Documentation

Regio Ardo (EN) - valid for software version 2.0-1-01
Download
Regio Ardo, CE decl. (EN)
Download
Regio Ardo - Hardware
Watch
Regio Ardo/Eedo Version history (EN)
Download
Regio Ardo / Regio Eedo (EN) - valid for software version 2.1-1-00
Download
Regio Ardo / Regio Eedo Variable list (EN) - valid for software version 2.1-1-00
Download
Regio Ardo and Eedo Revision log (EN)
Download
Regio ArdoEedo Software revision history (valid from 2.1-2.2) (EN, DE, FR, SV, IT)
Download
