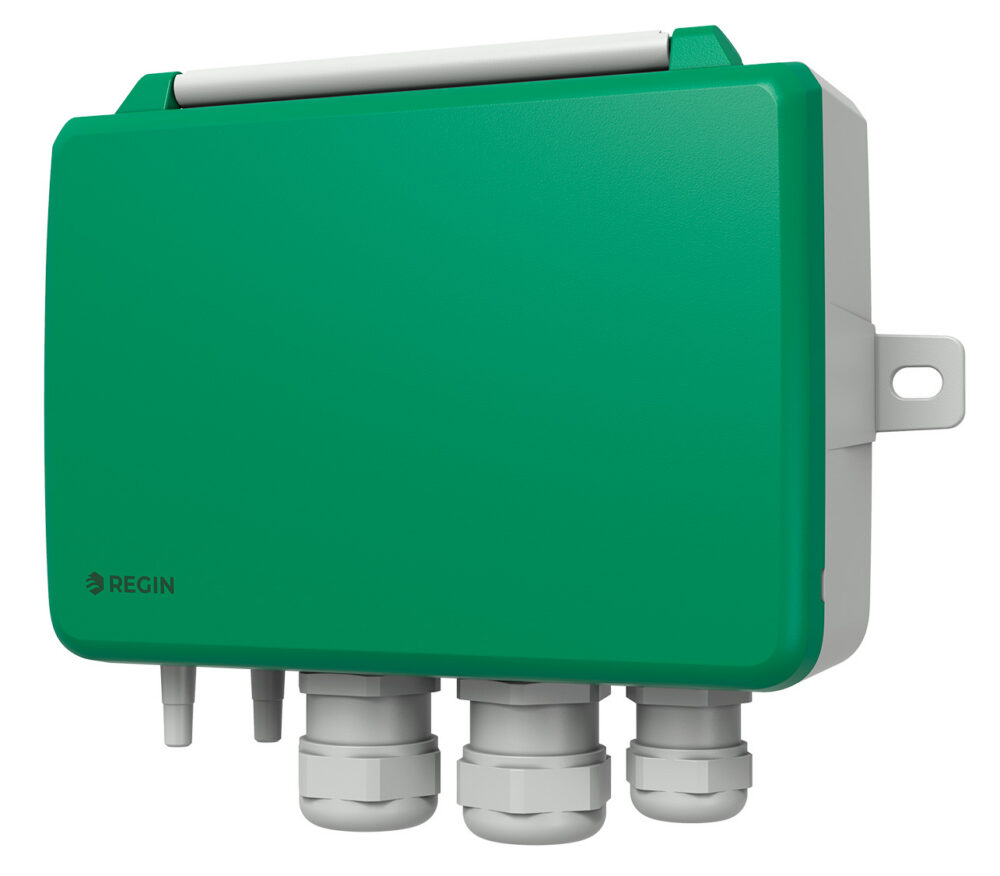

Presigo (PDTX…-C) – Differential pressure transmitter with communication
Differential pressure transmitters, 24 V, with two universal inputs, two universal outputs and communication via Modbus.
Item
Technical Data
Power Supply
| Power Supply | 24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 4.0 VA |
|---|
Environment and protection
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 0…95 % RH |
| Ambient temperature | -25…50 °C |
| Mounting | Wall |
| Dimensions, external (WxHxD) | 167x46x130 mm |
| Media | Air, non-combustible and non-aggressive gases |
Controllers Type 1 - I/O, specifications
| Universal inputs type (UI) | PT1000*, Ni1000, 0...10 V, Digital input |
|---|---|
| Universal outputs type (UO) | Configuration AO (AO / DO)n0…10, Configuration DOnMosfet outputs, 24 V AC or DC, 2 A continuous, nPower output Max. 2A (total UO1 + UO2) |
Transmitter data - Pressure
| Damping (electronic) | settable 1…12 s |
|---|
Connection specification
| Cable gland | M16x1, 5, M20x1, 5 |
|---|---|
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
Material and colour
| Material, housing | Polycarbonate (PC) |
|---|---|
| Material, base | Polycarbonate (PC) |
