Home Produkte Valves Globe valves Internally threaded MTVS, MTRS – 2- and 3-way control valves, DN15-50, kvs 0.63-39, 20 mm stroke, DZR

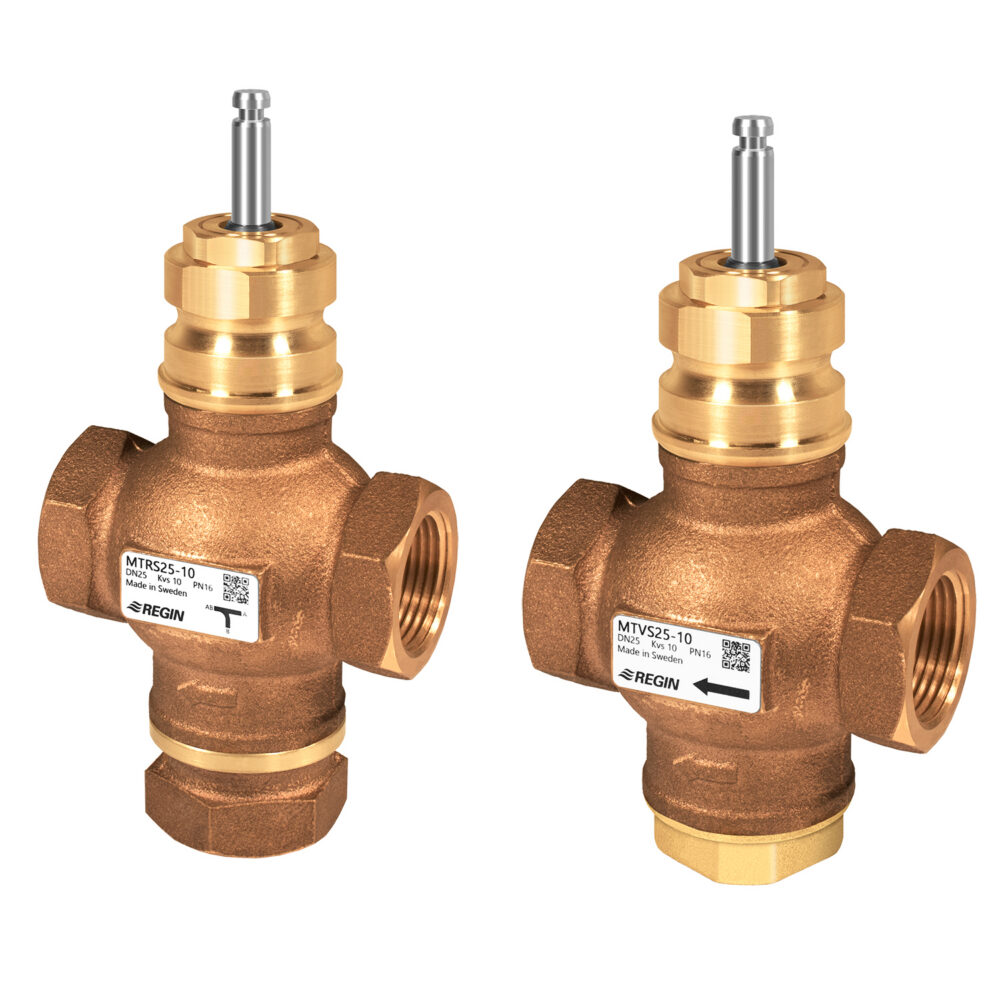

MTVS, MTRS – 2- and 3-way control valves, DN15-50, kvs 0.63-39, 20 mm stroke, DZR

Valves designed for control of hot, cold or glycol-mixed water in heating and ventilation systems. They also function very well where DZR-material is a requirement (DZR = Dezincification Resistant). The valves are intended for use together with Regin’s RVAN5 actuators. RVAN10 actuators can also be used if larger actuating force is required.


Item

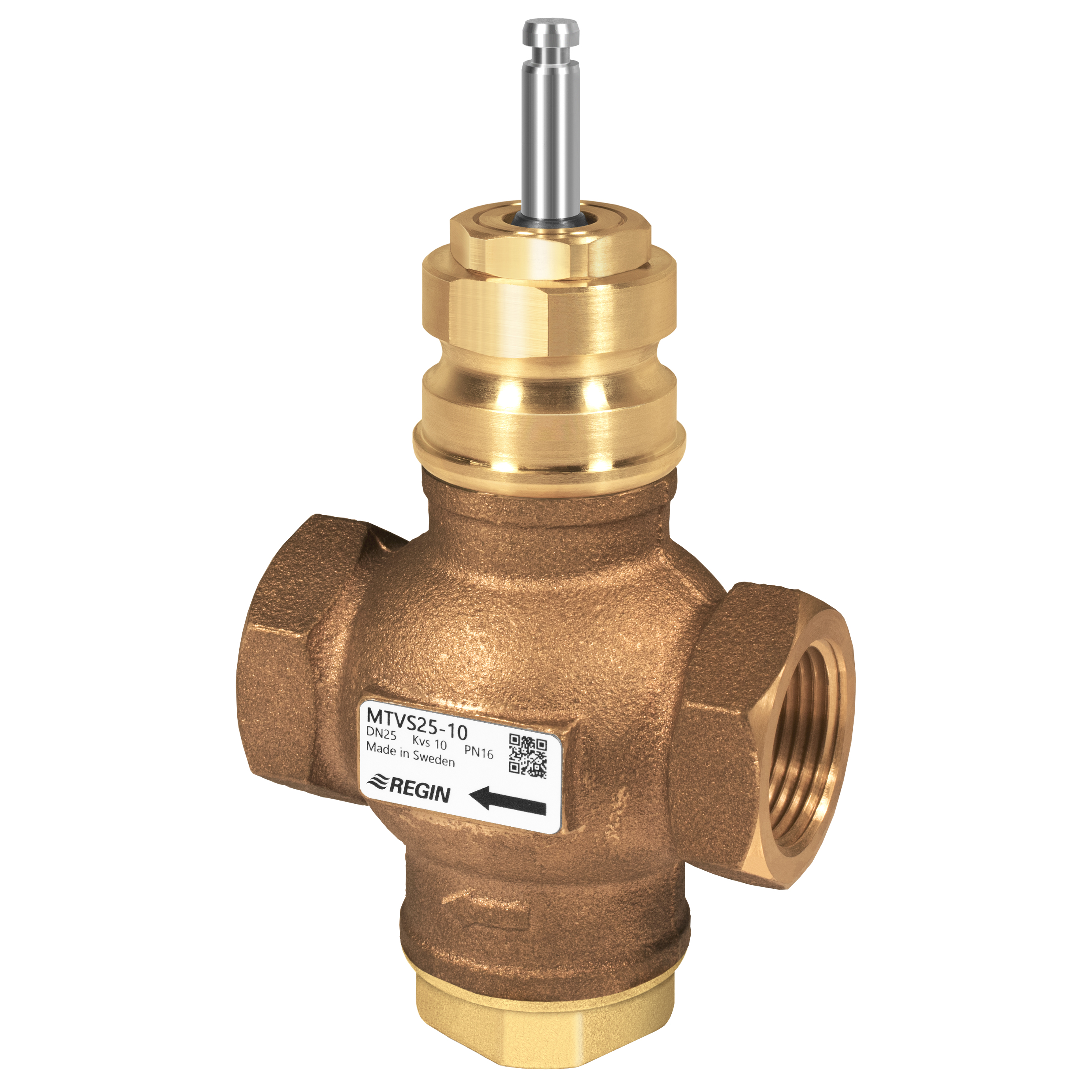

MTVS15-0,63

MTVS15-0,63

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
0.63 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS15-1,0

MTVS15-1,0

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
1 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS15-1,6

MTVS15-1,6

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
1.6 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS15-2,1

MTVS15-2,1

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
2.1 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS15-2,7

MTVS15-2,7

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
2.7 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS20-4,2

MTVS20-4,2

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN20
Kvs
4.2 m³/h
Max. diff. pressure
1600 kPa
Connection
G 3/4"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS20-5,6

MTVS20-5,6

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN20
Kvs
5.6 m³/h
Max. diff. pressure
1600 kPa
Connection
G 3/4"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS25-10

MTVS25-10

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN25
Kvs
10 m³/h
Max. diff. pressure
1400 kPa
Connection
G 1"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS32-16

MTVS32-16

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN32
Kvs
16 m³/h
Max. diff. pressure
800 kPa
Connection
G 1 1/4"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS40-27

MTVS40-27

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN40
Kvs
27 m³/h
Max. diff. pressure
600 kPa
Connection
G 1 1/2"
Media temperature
-5…150 °C
Valve Type
2-Way
View
MTVS50-39

MTVS50-39

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN50
Kvs
39 m³/h
Max. diff. pressure
400 kPa
Connection
G 2"
Media temperature
-5…150 °C
Valve Type
2-Way
View

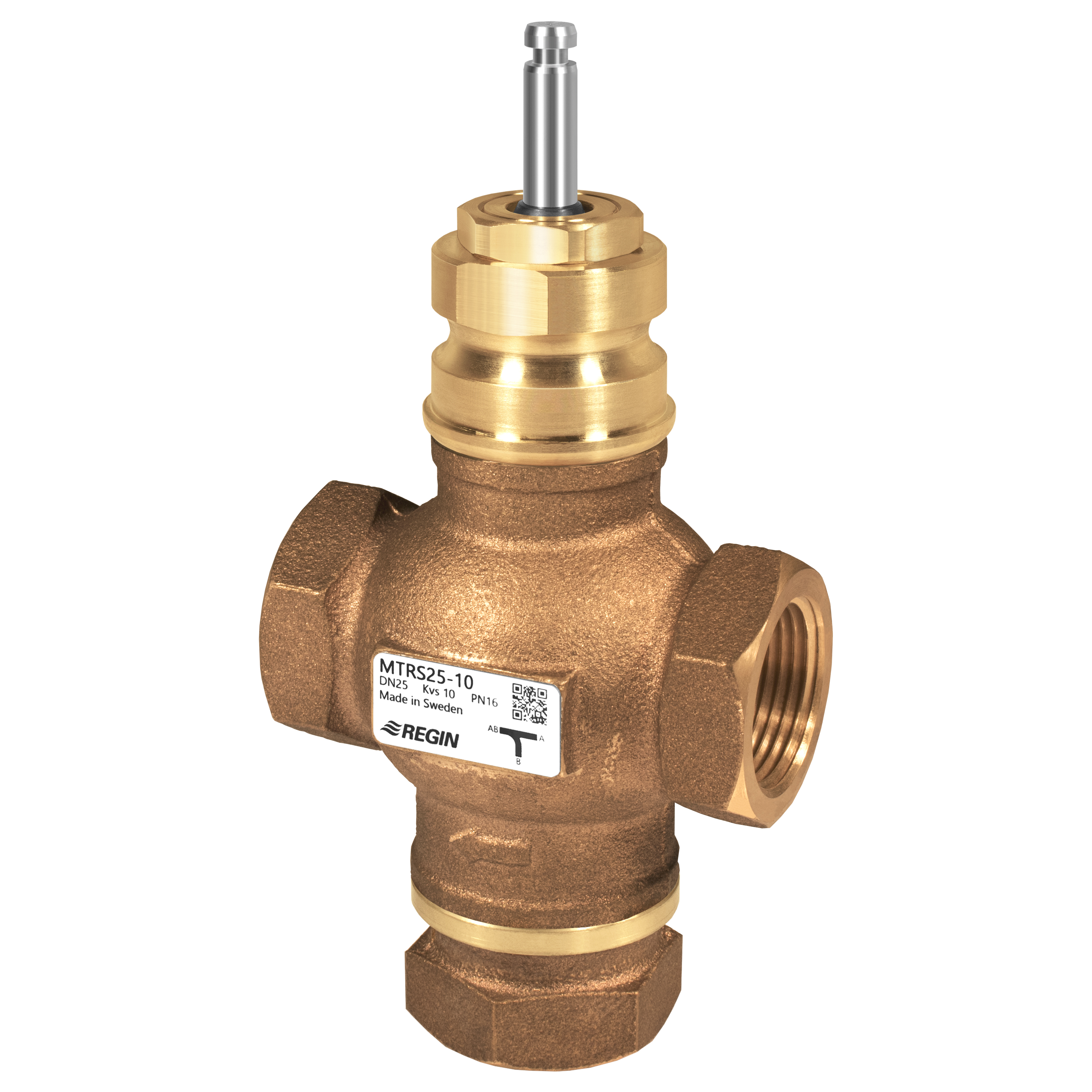

MTRS15-0,63

MTRS15-0,63

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
0.63 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS15-1,0

MTRS15-1,0

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
1 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS15-1,6

MTRS15-1,6

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
1.6 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS15-2,1

MTRS15-2,1

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
2.1 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS15-2,7

MTRS15-2,7

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN15
Kvs
2.7 m³/h
Max. diff. pressure
1600 kPa
Connection
G 1/2"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS20-4,2

MTRS20-4,2

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN20
Kvs
4.2 m³/h
Max. diff. pressure
1600 kPa
Connection
G 3/4"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS20-5,6

MTRS20-5,6

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN20
Kvs
5.6 m³/h
Max. diff. pressure
1600 kPa
Connection
G 3/4"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS25-10

MTRS25-10

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN25
Kvs
10 m³/h
Max. diff. pressure
1400 kPa
Connection
G 1"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS32-16

MTRS32-16

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN32
Kvs
16 m³/h
Max. diff. pressure
800 kPa
Connection
G 1 1/4"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS40-27

MTRS40-27

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN40
Kvs
27 m³/h
Max. diff. pressure
600 kPa
Connection
G 1 1/2"
Media temperature
-5…150 °C
Valve Type
3-Way
View
MTRS50-39

MTRS50-39

Rangeability
100:1
Stroke
20 mm
Nominal diameter
DN50
Kvs
39 m³/h
Max. diff. pressure
400 kPa
Connection
G 2"
Media temperature
-5…150 °C
Valve Type
3-Way
View

Software & Documentation

Product Sheet

MTVS/MTRS (EN)
Download

Other Documentation

MTVS/MTRS env. decl (EN)
Download
MTVS_MTRS CE decl. (EN)
Download
