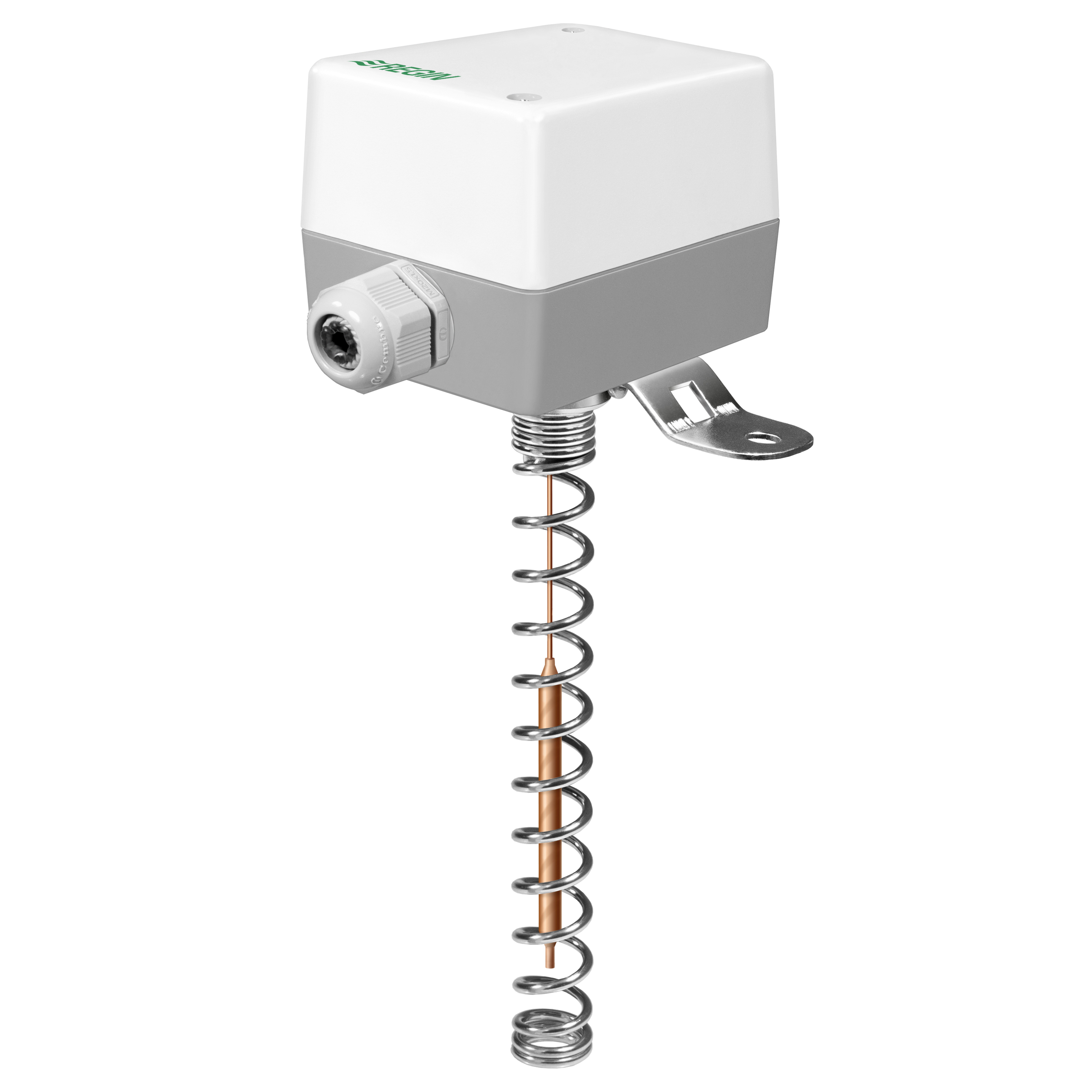

Duct thermostat, IP65
High quality thermostats for use in cooling, heating and ventilation systems.
Item
Technical Data
Thermostat
| Sensor element | Liquid-filled copper capillary with 200 mm protection spring |
|---|---|
| Probe insertion length | 200 / Ø 21 mm |
| Electrical contact | SPDT microswitch |
| Switching capacity | 15 (8) A, 24…250 V AC |
Environment and protection
| Appliance class | Class I |
|---|---|
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | -35…65 °C |
| Storage temperature | -40…70 °C |
| Storage humidity | 10...95 % RH |
| Dimensions, external (WxHxD) | 70x72x108 mm |
| Dimensions, external (WxHxD) | 70x86x108 mm |
| Weight, incl. packaging | 0.69 kg |
Material and colour
| Material, cover | ABS |
|---|---|
| Material, base | PC+ABS blend (Bayblend®) |
